BOWER'S PATENT AIR COMPRESSOR.

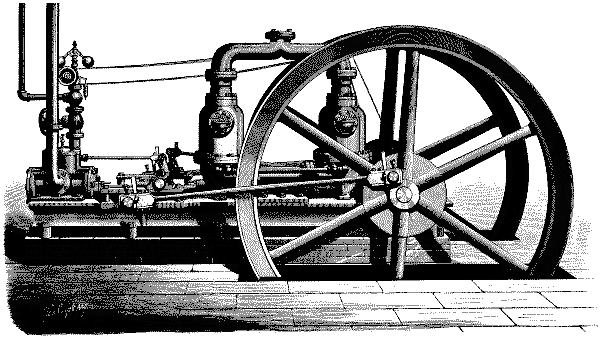

The new air compressor herewith illustrated may be operated by steam or water power, and is available for work in mines, tunnels, or quarries, for driving rock drills, coal cutters, and hauling and pumping engines, working mining pumps, for use in factories, and in fact for all service where a safe and efficient power is required. The construction of the machine, the capacity of which differs according to the amount of power required, will readily be understood from the illustration. Above the air cylinder are two distinct air chambers, each having two induction or receiving valves, which cushion on rubbers. With the movement of the piston these chambers alternately receive and force the compressed air through check valves placed in the upper part of the air compartment, both compartments being connected with one pipe conveying the air to the ordinary air receiver. These check valves lift alternately, and cushion on water; and as the compressed air is forced into the pipe connecting with the receiver, without a possibility of any of it escaping back into the receiving chambers, it is claimed that there is the smallest possible loss of power, and that the machine will give fully 90 per cent of steam power expended in the shape of compressed air. The compressor is compact in form, strongly made, simple in construction, and not liable to get out of order. One peculiarity in its construction is that no water jacket or hollow piston is used; yet under any of the extreme pressures to which the machine has been tested, no inconvenience, we are informed, from heat has been perceptible.
In connection with the compressor, receivers of various sizes are used, into which the air is pumped and thence conveyed by pipe to the location where required, even if it be a mile or more, the loss by friction between receiver and point of utilization of the air being, it is claimed, under 2 lbs. of the pressure.
The manufacturers also build water-power compressors, one of which, driven by 75 to 100 horse power, they have recently shipped to Utah. The machine is intended to convey the air through iron tubes 5,000 feet to the mouth of a silver mine, where a 50 horse power hoisting and a 25 horse power pumping engine will be driven by air instead of steam, and a tube will be extended into the mine 1,000 feet deep, where the power drills and small pumps will be operated by air also.
The manufacturers submit a number of excellent testimonials from parties using the machine. From one, we learn, that at the Antelope and Prince of Wales mine, near Alta City, Utah, the compressor runs 10 hours per day, and supplies compressed air to two 3 inch drills used in running levels. The distribution terminates at distances of from 1,000 to 2,000 feet from the compressor. The machine also drives one hoisting engine and ventilates the lower part of the mine. The main supply pipe is three inches in diameter, 2,300 feet long, and is tapped by two inch pipe wherever power is required. The expenditure of fuel is one cord of green pine wood and 600 lbs. of bituminous coal per 10 hours. Air pressure in receiver 100 lbs. This pressure is reported to be obtained by 70 lbs. of steam as indicated by the gauges.
For further particulars, address the manufacturers, Messrs. Griffith and Wedge, Zanesville, Ohio.
