IMPROVED HARNESS COCKEYE.
We illustrate herewith a very simple little device for attaching traces to the single tree. It forms a secure fastening which may be instantly attached, and which, by its construction, is prevented from wearing out rapidly.

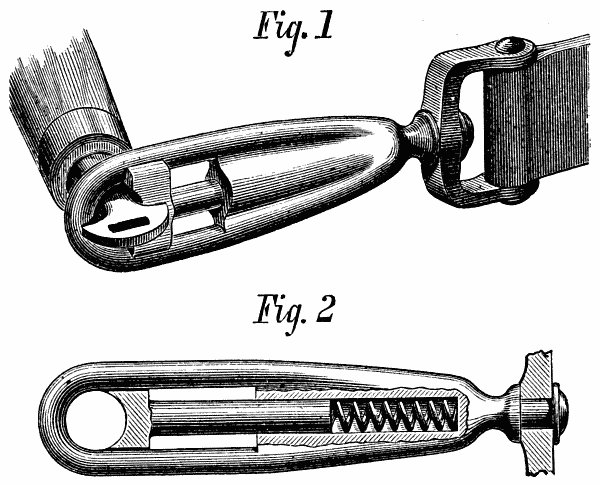

Fig. 1 shows the cockeye attached to the single tree, and Fig. 2 exhibits parts in section, displaying the construction very clearly. The yoke is of the usual pattern. Swiveled to it is a long loop, which is chambered out to receive a spiral spring which acts upon a plunger. The latter is provided with a follower having a semicircular notch, which corresponds in form to the inside of the end of the loop. The follower also has guiding lips which extend over the sides of the loop. Through the yielding of the spring, the space between the follower and loop adjusts itself to studs or hooks of any size. Patented December 12, 1876, through the Scientific American Patent Agency. For further particulars, address the inventors, Messrs. F.W. Knapp and C. Schallhorn, Fiddletown, Amador county, Cal.
