NEW STEAM VALVE.

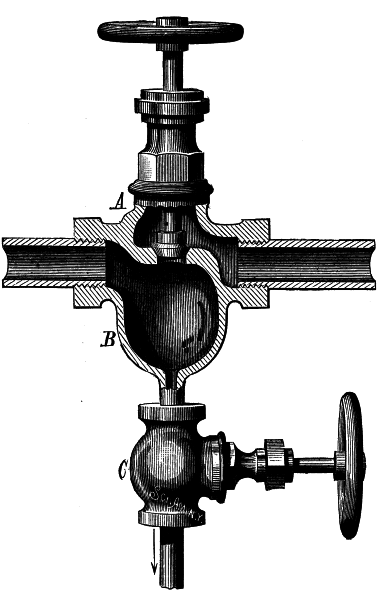

The improved valve shown partly in section in the engraving is designed for removing the water of condensation from steam pipes, so that dry steam may be furnished.

SAUNDERS' STEAM VALVE.

In the engraving, the globe valve, A, is of the usual form, except that the casing below the valve seat is enlarged, forming a pocket, B, which communicates through an aperture at the bottom with a small valve, C.

The steam, in passing through the valve, fills the pocket and there deposits any water that may have condensed from the steam in its passage through the steam pipe. The increased depth of the lower portion of the valve prevents siphoning, which takes place in valves of the ordinary form. The valve, C, is kept slightly open to discharge the water at the moment it collects in the pocket; the water is thus prevented from passing onward to the engine or other point of use.

This valve affords a ready means of supplying dry steam to sulphuric acid chambers. We are informed that by its use a chamber in ordinary working order will produce acid 3° to 5° Baumé stronger than can be obtained with ordinary globe valves. Thirty steam pipes, arranged at different points, are found to deliver into a chamber in the space of five minutes from 4 to 16 ounces of condense water (according to the circumstances of distance, temperature of the air, size of pipe, etc.). These valves, being placed close to the chamber separating all the condense water, deliver with certainty uniformly dry steam, without the inconvenience of ordinary steam traps or other expensive appliances.

This valve was patented through the Scientific American Patent Agency, May 21, 1878. For further particulars address Mr. Joseph Saunders, 975 Third avenue, Brooklyn, N. Y.


A Hint from the Mormons.

Ex-Governor Hendricks, in a recent industrial address, alluded to the highly prosperous condition of the Mormons as existing previous to the influx of the Gentiles into Utah, saying that "to the fact that they produced all they consumed I attribute their wonderful prosperity." This remark, associated with the prosperity of other communities in different parts of the country, would suggest the query of "Why the principle cannot be more largely applied to the whole nation?" Certainly the resources of the whole country would indicate a much greater diversity of production, and if there was the same regard for a uniform building up of our industrial system there would seem to be need of but little importation, certainly of goods which can be readily made, and which our people need the labor to produce.


New Agricultural Inventions.

Joseph George, of Springfield, Greene Co., Mo., has patented an improved form of Cultivator or Shovel Plow, designed to be convertible into either a single, double, or triple shovel plow as occasion may require. It consists in two detachable clamping plates, which hold the plow beams, and their arrangement with respect to the said beams and the handles of the plow, whereby a single bolt is made to secure the forward ends of the handles and clamp the plates to hold the plow beams in place.

Russel O. Bean, of Macedonia, Miss., is the inventor of an improved Seed Planter for planting cotton and other seeds, and for distributing fertilizers. The details of the construction of this planter cannot be explained without engravings.

Rutus Sarlls and Alexander Kelman, of Navasota, Texas, have invented an improved combined Planter, Cultivator, and Cotton Chopper, which may be readily adjusted for use in planting seed, cultivating plants, and chopping cotton to a stand, and is effective and reliable in operation in either capacity.

William H. Akens, of Penn Line, Pa., is the inventor of an improved Dropper, for attachment to the finger bar of a reaper, to receive the grain and deliver it in gavels at the side of the machine, so as to be out of the way when making the next round. It is so constructed that when attached to the finger bar of a mower it will convert it into a harvester.

James Goodheart, of Matawan, N. J., has devised an improved machine for Distributing Poison upon potato plants to destroy the potato bug. It may also be used for sowing seeds.

William V. McConnell and Charles M. Dickerson, of Crockett, Texas, have invented an improved Fruit Picker, having cup-shaped self-opening spring jaws attached to its handle, and operated by a cord to close upon and clamp the fruit. It also has a hollow extensible adjustable handle and a fruit receiver.


Quick Work.

Two years ago a farmer-miller and his wife, at Carrolton, Mo., furnished some invited guests with bread baked in eight and a quarter minutes from the time the wheat was standing in the field. This year it was determined to make still better time. Accordingly elaborate preparations were made to reap, thrash, grind, and bake the grain with the least possible loss of time.

In 1 minute 15 seconds the wheat, about a peck, was cut and thrashed, and put on the back of a swift horse to be carried to the mill, 16 rods away. In 2 minutes 17 seconds the flour was delivered to Mrs. Lawton, and in 3m. 55s. from the starting of the reaper the first griddle cake was done. In 4 minutes 37 seconds from the starting of the reaper, a pan of biscuits was delivered to the assembled guests.

After that, according to the Carrolton Democrat, other pans of delicious "one minute" biscuits were baked more at leisure, and eagerly devoured, with the usual accompaniment of boiled ham and speech making.
