NEW STENCIL PEN.

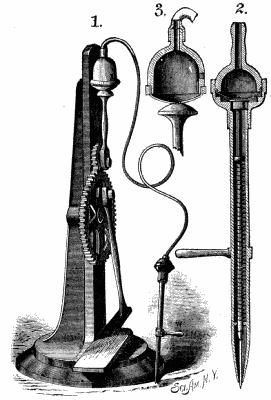

The accompanying engraving shows new form of stencil pen invented by Mr. J. W. Brickenridge, of La Fayette, Ind. In Fig. 1 the entire apparatus is shown in perspective; Fig. 2 is a longitudinal section of the pen; and Fig. 3 is a vertical section of a portion of the driving apparatus. In this instrument compressed air is used as a motive force for driving the perforating needle. The inverted cup, shown in detail in Fig. 3, has its mouth closed with a flexible diaphragm, which is vibrated rapidly by a pitman having a convex end attached by its center to the middle of the diaphragm. The pitman is reciprocated by a simple treadle motion, which will be readily understood by reference to Fig. 1.
The cup has a small aperture covered by a valve to admit of the entrance of air when the diaphragm is drawn down. The pen, shown in detail in Fig. 2, has a cup and flexible diaphragm similar to the one already described. The diaphragm rests upon the enlarged end of a bar which carries at its lower end a perforating needle. The pen is connected with the driving mechanism by a flexible tube. The needle bar is pressed lightly against the diaphragm by a spiral spring.
When the treadle motion is operated the impelling diaphragm is rapidly vibrated, and through the medium of the air contained in the flexible tube it communicates motion to the pen diaphragm and consequently to the needle bar and needle. If, while the needle is reciprocated in this way, the pen is moved over the surface of the paper, a line of fine perforations will be made. With this instrument stencils may be made for making multiplied copies of maps, drawings, and manuscripts.
